QFD and TIPS/TRIZ

Ellen Domb, Ph.D.
The PQR Group, 190 N. Mountain Ave., Upland, CA 91786 USA
+1(909)949-0857 FAX +1(909)949-2968 e-mail ellendomb@compuserve.com



Introduction: "TIPS" is the acronym for "Theory of Inventive Problem Solving," and "TRIZ" is the acronym for the same phrase in Russian. TRIZ was developed by Genrich Altshuller and his colleagues (Ref. 1,2,3,4) in the former USSR starting in 1946, and is now being developed and practiced throughout the world. (Ref.5).

TRIZ research began with the hypothesis that there are universal principles of invention that are the basis for creative innovations that advance technology, and that if these principles could be identified and codified, they could be taught to people to make the process of invention more predictable. The research has proceeded in several stages over the last 50 years. Over 2 million patents have been examined, classified by level of inventiveness, and analyzed to look for principles of innovation. The three primary findings of this research are as follows:

  1. Problems and solutions were repeated across industries and sciences
  2. Patterns of technical evolution were repeated across industries and sciences
  3. Innovations used scientific effects outside the field where they were developed

Much of the practice of TRIZ consists of learning these repeating patterns of problems-solutions and patterns of technical evolution, and methods of using scientific effects, and applying the general TRIZ patterns to the specific situation that confronts the inventor.. Figure 1 describes this process.

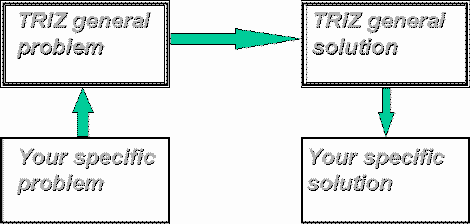

Figure 1. The general model for TRIZ problem solving

Early research indicates that inventors using TRIZ experience improvement of 70% to 300% or more in the number of creative ideas that they generate for solving technical problems and in the speed with which they generate innovative ideas. (Ref. 6). When TRIZ was first introduced to practitioners of Quality Function Deployment, the appeal was immediate. (Ref. 7,8 US introduction, Ref. 9,10 Japanese introduction)

QFD has been winning proponents because of the clarity with which it identifies customers’ needs, organizational technological capabilities, design properties, reliability problems, functional capabilities, and the relationships between all these factors. Many QFD users found themselves overwhelmed with the richness of these data: once they knew the relationships between the customers’ needs and their own abilities to satisfy those needs, they wanted further help to create the innovative product and service designs that would meet or exceed the customers’ needs. TRIZ is the family of tools that gives QFD practioners the help they need to innovate to satisfy their customers.



QFD and TRIZ:

Each of the major tools of TRIZ can be used in a variety of stages of Quality Function Deployment. For simplicity, the tools of TRIZ will be explained briefly, and a correlation matrix will be proposed to identify the opportunities to use TRIZ to enhance QFD.

There are many ways to organize the tools and techniques of TRIZ. A flow chart is useful when introducing TRIZ, since it shows how the tools are related, as well as what they are. Figure 2 is a typical flow chart used for either a product design or process development problem.

The first stage is analysis. Tools shown on the flow chart are

Ideality = S Benefits / ( S Costs + S Harm)

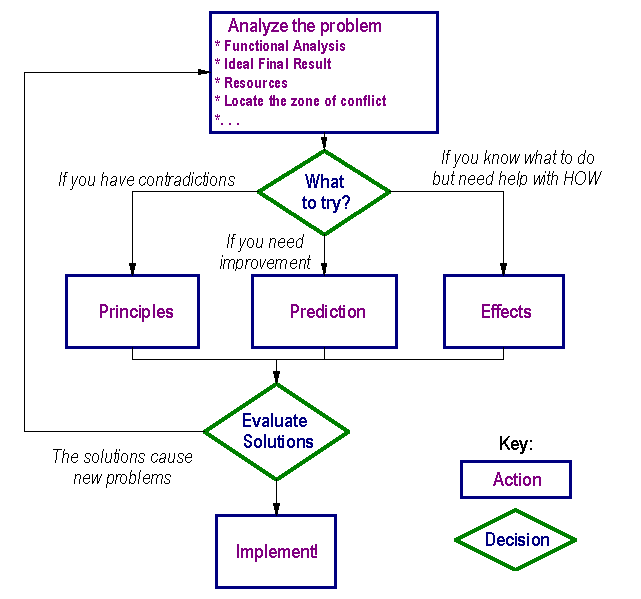

Figure 2. General TRIZ problem solving flow chart, showing many of the tools of TRIZ. Not shown on the flow chart are S-Field Analysis (a diagrammatic modeling system used for describing problems and identifying categories of solutions, used for difficult or advanced problems) and ARIZ, the "Algorithm for Inventive Problem Solving." which is a non-computational algorithm, a series of over 70 questions, that is an alternate way of linking the tools and techniques of TRIZ.



If the problem has been solved in the analysis phase, developers frequently proceed to implementation. If it has not been solved, or if alternate solutions are desired for maximum creativity, the data-based tools, Principles, Prediction, and Effects, are used. In many TRIZ applications, all three of the data-based tools of TRIZ are used. The flow chart shows a decision (diamond symbol à ) indicating the choice of tools.

  1. Increased Ideality
  2. Stages of Evolution
  3. Non-uniform development of system elements
  4. Increased dynamism and controllably
  5. Increasing complexity, then simplicity
  6. Matching and mismatching of parts
    1. Transition to micro level and use of fields
    2. Decreased human interaction (increased automation)

The last block in the flow chart is Evaluation of Solutions. Solutions are compared to the Ideal Final Result, to be sure that the improvements do advance the technology and meet the customers’ needs. Multiple solutions may be combined to improve the overall solution using a Feature Transfer (Ref. 14) which is similar to Pugh concept selection and improvement (Ref. 15.)

The flow chart shows that remaining problems are resolved by iterating the process. The advantage of TRIZ is that the iterations are very fast, and a great number of innovative ideas are developed at each stage.

The general problem solving process of TRIZ can be used whenever the product or process developer has inventive problems. Specific tools that may be useful by themselves during Quality Function Deployment are listed in Figure 3, and the stages of QFD in which they are useful are indicated.

TRIZ Tools are used throughout QFD



Qualtiy Function Deployment Stages

TRIZ Techniques

Product Planning

Visit the Gemba

Voice of the Customer

Demanded Quality Deployment

Reliability Deployment

Function Deployment

Concept Selection

Component Selection

Production Planning

Quality Assurance Plan

Ideal Final Result

X



X

X

X

X



Technology Forecasting

X



X

X



X

X



Resolving Contradictions

X

X

X

X

X

X

X

X

X

X

Use of Resources



X



X

X

X

X

Functional Analysis

X



X

X

X



X



Trimming

X



X

X

X



X



Scientific Effects



X

X

X

X

Feature Transfer



X

X



Anticipatory Failure Determination



X



X

Figure 3. "X" indicates common use of TRIZ techniques to solve problems that occur during the indicated stage of QFD.

The use of TRIZ to enhance the practice of QFD is very new. Research will continue to find ways to integrate these methods to help all product and process developers create innovative solutions that win market leadership by solving customer problems.



References:

  1. E. Domb, K. Tate, R. King. TRIZ: An Approach to Systematic Innovation. Methuen, MA, USA. GOAL/QPC, 1997. service@GOAL.com
  2. J. Terninko, A.Zusman, B.Zlotin. Step-by-Step TRIZ: Creative Solutions to Innovative Problems. Nottingham, NH USA Responsible Management,. john@terninko.com
  3. Victor Fey and Eugene Rivin: The Science of Innovation: A Managerial Overview of the TRIZ Methodology. Southfield, MI. USA. The TRIZ Group TRIZGR@aol.com
  4. G. Altshuller. Creativity as an Exact Science. Translated by Anthony Williams. NY. Gordon & Breach Science Publishers, 1988.
  5. The TRIZ Journal 1996-1997. http://www.triz-journal.com
  6. V. Tsourikov. The Invention Machine case studies. http://www.invention-machine.com, June, 1997 and E. Domb, work in progress.
  7. E. Domb, J. Kowalik. Tutorial on TRIZ. 7th Annual QFD Symposium, 1995.
  8. E. Domb, A. Zusman . Tutorial on TRIZ. 8th Annual QFD Symposium, 1996.
  9. E. Domb, J.Terninko, Tutorial on TRIZ. 9th Annual QFD Symposium, 1997 and 5 technical papers in the Proceedings of the 9th Annual QFD Symposium, 1997.
  10. G. Mazur. "If Japan Can, So Can We." 61st JUSE TQM Conference, Dec. 1995.
  11. G. Mazur. 2 part series in April, 1996 in Nikkei Mechanical.
  12. S.Kaplan. "Anticipatory Failure Determination." Proceedings of the 9th Annual QFD Symposium, 1997.
  13. E. Domb. "Contradictions: Air Bag Applications" The TRIZ Journal. July, 1997.
  14. K. Rantanen. "Polysystem Approach to TRIZ." The TRIZ Journal, Sept., 1997.
  15. D. Clausing. Total Product Development. ASME Press, 1994.



© 1997 Ellen Domb. (909)949-0857. First published in "Proceedings of the 3d International Symposium on QFD," Linkoping, Sweden, 1997.
